Toyota BZ3X

Where Efficiency Meets Adventure

Vehicle Overview

The 2025 Guangzhou Toyota Platinum Intelligence 3X AWD 520 Max is positioned as a compact pure electric SUV, built on the e-TNGA pure electric platform. The vehicle dimensions are 4,600 × 1,875 × 1,645 mm (length × width × height), with a wheelbase of 2,765 mm and a curb weight of 1,760 kg (including battery). In its five-door, five-seat configuration, the trunk offers a standard volume of 427 L, which can be expanded to 1,275 L when the rear seats are folded down, catering to both urban daily use and family short-distance travel needs.

Power and Performance

Motor and Drive: Front-mounted single motor, permanent magnet synchronous, with a maximum power output of 150 kW (204 PS) and peak torque of 200 N·m, adopting a front-wheel drive configuration.

Acceleration and Top Speed: Official 0–50 km/h acceleration in 4 seconds; top speed of 160 km/h, suitable for both urban and highway daily use.

Battery and Range:Equipped with a 58.3 kWh lithium iron phosphate battery (Zhengli New Energy/Zhongxin Innovation), CLTC pure electric range of 520 km; measured energy consumption of 12.5 kWh/100 km, equivalent fuel consumption of 1.45 L/100 km.

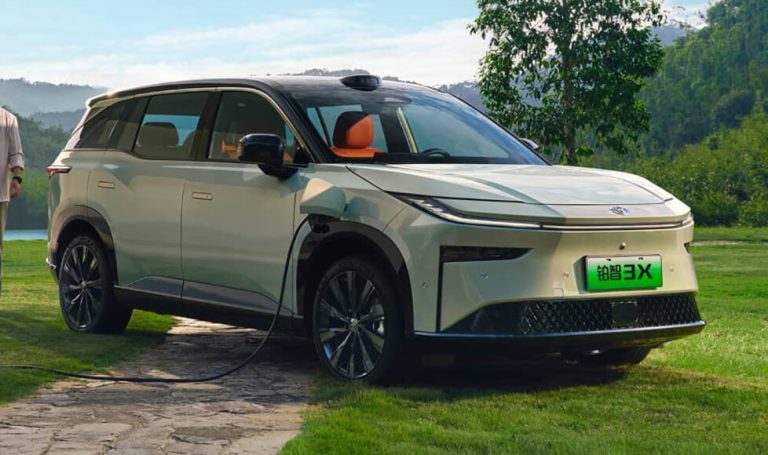

Charging Efficiency: Supports fast charging (30–80% in 0.4 hours) and slow charging (0–100% in 10 hours). The fast-charging port is located on the right fender, compatible with both home and public charging stations.

Exterior Design and Chassis

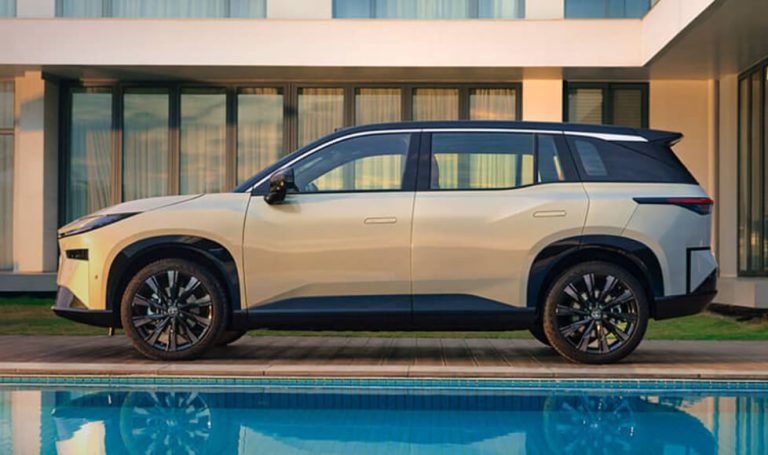

Body and tires: Dimensions 4,600 × 1,875 × 1,645 mm, wheelbase 2,765 mm, minimum turning radius 5.6 m, drag coefficient 0.27 Cd. Standard 215/55 R18 tires (front and rear) with aluminum alloy wheels.

Suspension and Chassis: Front MacPherson independent suspension + rear torsion beam non-independent suspension, EPS electric power steering, load-bearing body structure, balancing comfort and economy.

Interior and Technology Features

Center console and screen: 14.6-inch center console touchscreen + 8.8-inch fully digital instrument cluster, powered by a Qualcomm 8155P automotive-grade chip + 12 GB RAM, supporting OTA online updates, AR navigation, digital key, HiCar/CarPlay/CarLife, and wireless/wired mirroring.

Comfort and Convenience: Leather-like seats, front seat heating, electronic door locks, electric rear tailgate (position memory), front and rear USB-C ports, dual 50 W wireless charging, and VTOL mobile power station with 3.3 kW discharge functionality.

Safety and Driver Assistance

ADAS: Standard features include lane departure warning, forward/rear collision warning, AEB automatic emergency braking, lane change assist, ACC cruise control/adaptive cruise control, 360° surround view, automatic parking (AUTOHOLD), HAC, HDC, and other Level 2 driving assistance functions.

Body and Passive Safety: High-strength steel body (62%+), 6 airbags, ESC, EPB, TPMS, ISOFIX, tire pressure display, and seatbelt reminder, C-NCAP five-star safety certification.
